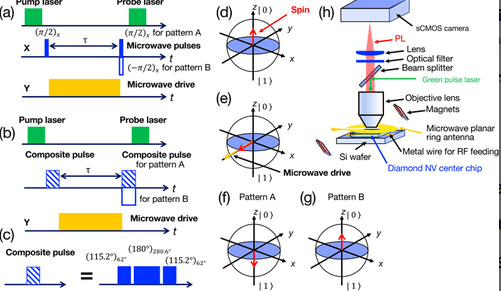

FIG. 1. Schematics of pulse sequences for spin-locking measurement with (a) two π/2 pulses and (b) two composite pulses. (c) Schematics of a SCROFULOUS composite pulse composed of three pulses. (d) Evolution of the spin state in the Bloch sphere. The spin state is initialized to the |0⟩ state by the first laser pulse. (e) The first π/2 pulse rotates the spin by 90∘ to the (−y)-direction. A y-driving microwave field is applied parallel to the spin in the rotation frame. (f) The second π/2 pulse rotates the spin by 90∘ to the (−z)-direction in the pulse sequence pattern A, or (g) the second −π/2 pulse rotates the spin by −90∘ to the z-direction in the pulse sequence pattern B. Finally, the spin state is read out from the PL by applying the second laser pulse. (h) Schematics of the experimental setup.

Topics: Applied Physics, Electrical Engineering, Materials Science, Optics

We present results of near-field radio-frequency (RF) imaging at micrometer resolution using an ensemble of nitrogen-vacancy (NV) centers in diamond. The spatial resolution of RF imaging is set by the resolution of an optical microscope, which is markedly higher than the existing RF imaging methods. High sensitivity RF field detection is demonstrated through spin locking. SCROFULOUS composite pulse sequence is used for manipulation of the spins in the NV centers for reduced sensitivity to possible microwave pulse amplitude error in the field of view. We present procedures for acquiring an RF field image under spatially inhomogeneous microwave field distribution and demonstrate a near-field RF imaging of an RF field emitted from a photolithographically defined metal wire. The obtained RF field image indicates that the RF field intensity has maxima in the vicinity of the edges of the wire, in accord with a calculated result by a finite-difference time-domain method. Our method is expected to be applied in a broad variety of application areas, such as material characterizations, characterization of RF devices, and medical fields.

Near-field radio-frequency imaging by spin-locking with a nitrogen-vacancy spin sensor, Shintaro Nomura1,a), Koki Kaida1, Hideyuki Watanabe2, and Satoshi Kashiwaya3, Journal of Applied Physics
